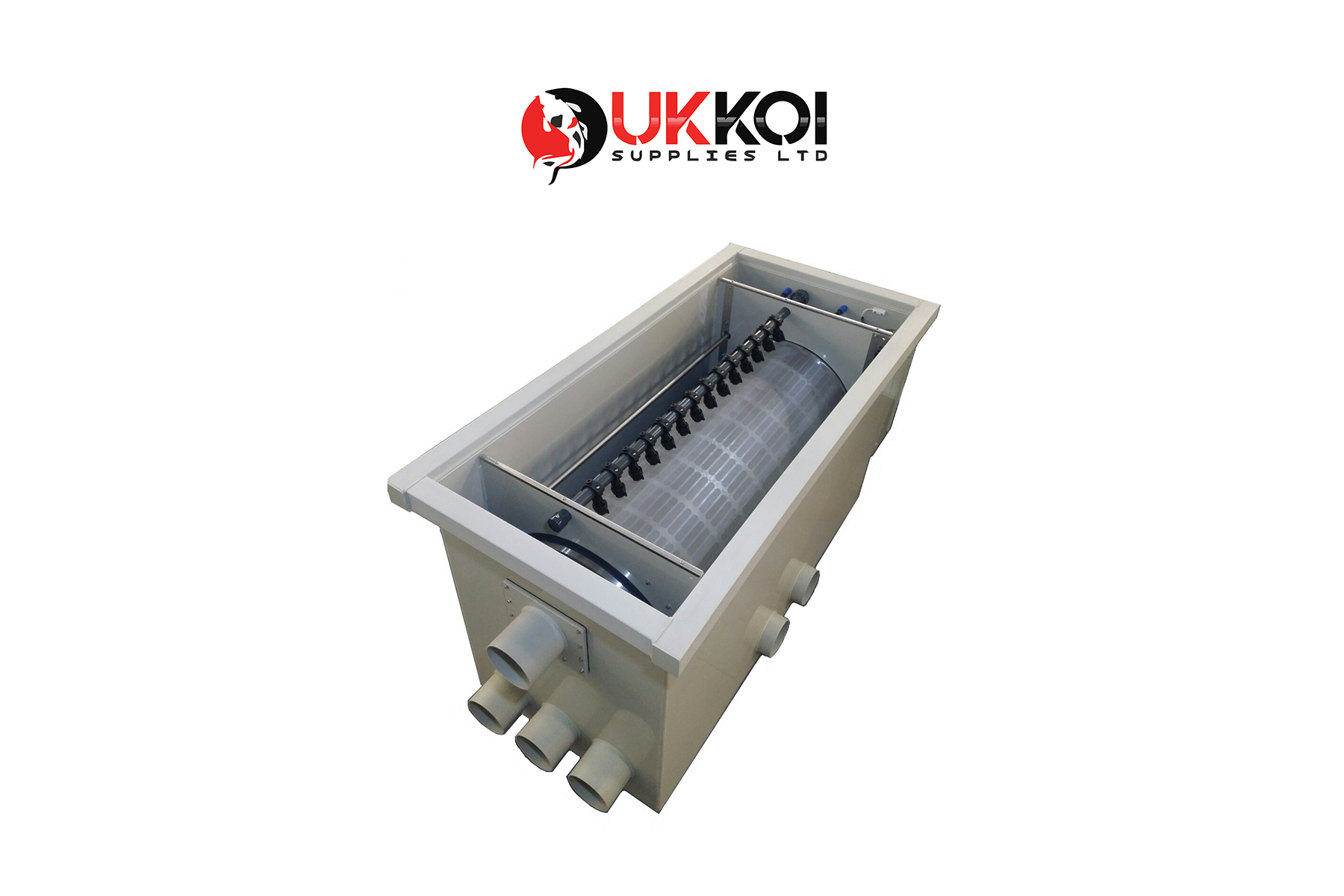

Burtons TF 1000 Tube Drum Filter

The Burtons TF 1000 Tube Drum Filter is a top-tier, high-capacity through-flow mechanical filtration system engineered for the largest koi ponds and aquatic environments. Designed and manufactured in the UK, this robust filter delivers exceptional water clarity and reliability for demanding pond setups.

Key features include:

• Massive flow capacity, handling up to 110,000 litres per hour (gravity-fed) and 75,000 litres per hour (pump-fed), making it ideal for very large ponds and high-stock environments.
• Enhanced through-flow design with 3 x 110mm inlets on both the front and back, and 2 x 110mm outlets on each side, providing superior flow and integration flexibility compared to standard drum filters.
• Fitted with a 60-micron stainless steel screen for highly efficient removal of fine debris and particulates.
• Weatherproof automatic control box with integrated socket panel, allowing direct plug-in of UV units and pumps for easy installation.
• Pre-fitted, low-wattage wash pump for efficient, automated cleaning cycles, and 14 spray tips for thorough screen cleaning.
• Waste chute features two additional cleaning tips to prevent build-up in the internal end of the chute.
• Safety cover switch cuts power to the drum motor and UVs when the lid is lifted, ensuring safe maintenance.
• Option to add up to 2 x 80-watt UV units inside the drum, which help control green water and keep the drum screen clean, reducing cleaning frequency.
• Low energy consumption: 1.3 watts in standby and 250 watts during cleaning.
• Installation height above water level: 25cm.
• Dimensions: 658mm (W) x 740mm (H) x 1480mm (L).
• 2-year standard guarantee for peace of mind.

The Burtons TF 1000 Tube Drum Filter is the ultimate solution for pond keepers seeking a powerful, low-maintenance filter for superior water clarity and healthy pond conditions, with the flexibility to add integrated UV filtration as needed.
