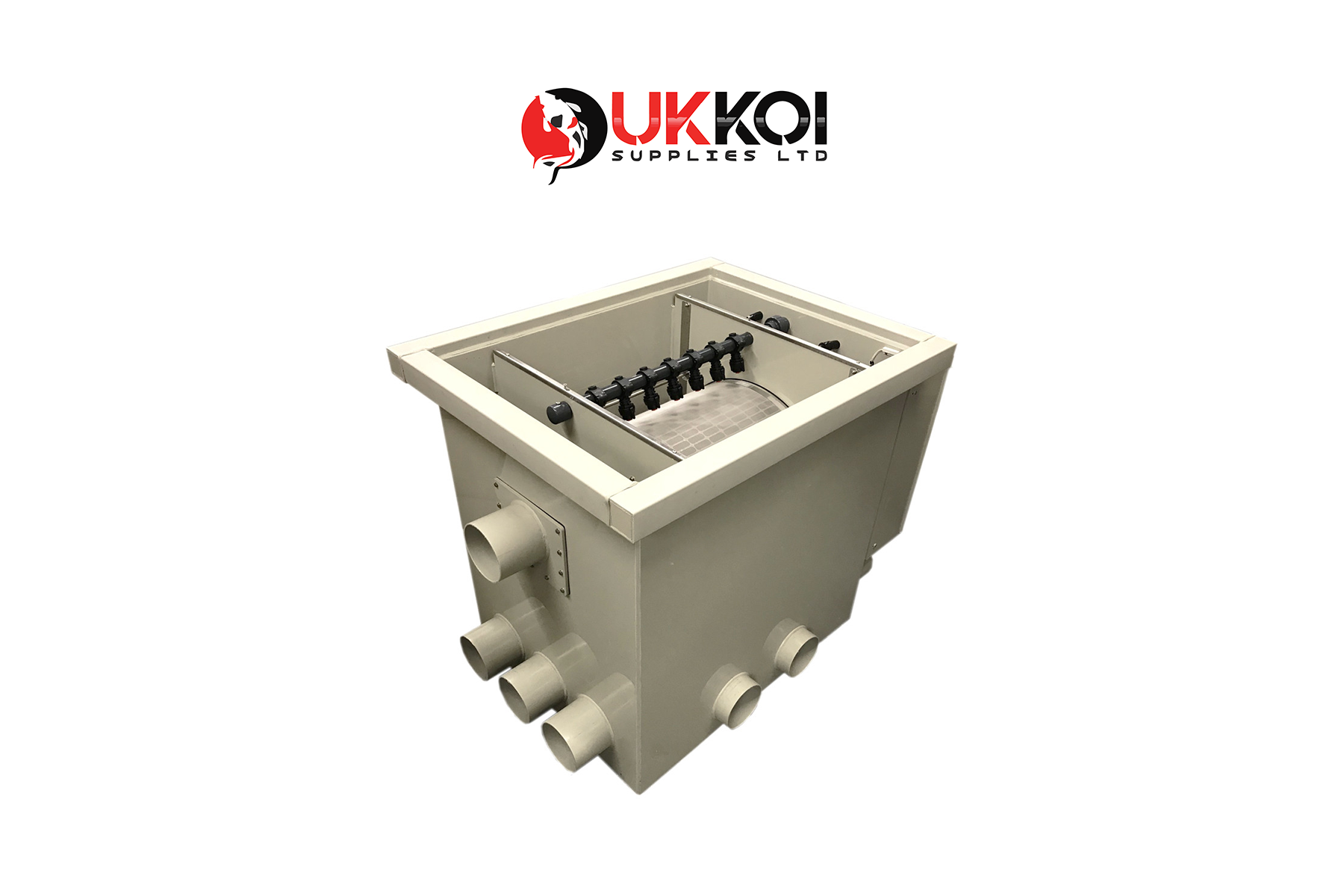

Burtons TF 500 Tube Drum Filter

The Burtons TF 500 Tube Drum Filter is a high-capacity, through-flow mechanical filtration system designed for large koi ponds and aquatic environments. Engineered for superior performance, this filter features a 60-micron stainless steel screen for efficient removal of fine debris, ensuring consistently clear water with minimal maintenance.

Key features include:

• Enhanced through-flow design with 3 x 110mm inlets on both the front and back, and 2 x 110mm outlets on each side, providing superior flow and integration flexibility compared to standard drum filters.
• Weatherproof automatic control box with integrated socket panel, allowing direct plug-in of UV units and pumps for easy installation.
• Fitted with a safety cover switch that cuts power to the drum motor and UVs when the lid is lifted, ensuring safe maintenance.
• Pre-fitted, low-wattage wash pump for efficient, automated cleaning cycles.
• Waste chute features two additional cleaning tips to prevent waste build-up in the internal end of the chute.
• Option to add up to 2 x 30-watt UV units inside the drum, which not only control green water but also help keep the drum screen clean, reducing cleaning frequency.
• Suitable for flow rates up to 55,000 litres per hour (gravity-fed) and 40,000 litres per hour (pump-fed).
• Low energy consumption: 1.3 watts in standby and 200 watts during cleaning.
• Installation height above water level: 25cm.
• Dimensions: 658mm (W) x 740mm (H) x 990mm (L).
• Designed and manufactured in the UK for long-lasting reliability.

The Burtons TF 500 Tube Drum Filter is ideal for pond keepers seeking a robust, low-maintenance solution for superior water clarity and healthy pond conditions, with the flexibility to add integrated UV filtration as needed
